QSFP28 DAC 100G 5M Passive Direct Attach Cable

Product Categories

Contact Now

Name: QSFP28 DAC 100G 5M Passive Direct Attach Cable
Brand: HiSeTec
Price: 1 USD

Place of Origin : Guangdong,China

Brand Name : HiSeTec

Certification : RoHS CE

Packaging Details : PE bag

Delivery Time : 5-8Week

Payment Terms : TT

Color : Black

outer covering : Zinc alloy

Length : 5M

Transmission rate : 100Gbps

PCB : Goldfinger gold plated 30U

Wire AWG : 26AWG

Series : QSFP28 SFF-8665

Sample : Allowed

Contact Now

QSFP28 DAC 100G Passive Direct Attach Copper Cable

QSFP28 100G DAC(PASSIVE)(SFF-8665),100G Passive Direct Attach Copper Cable


Product Features
· Meet MSA SFF-8665 specification
· Supports serials data rates up to 100Gbps
· Hot pluggable
· High cost effective to Fiber optics solution
· Low power consumption
· Enhanced EMI suppression
· Differential impedance 100ohm
· Up to 28.3125Gbps data rate per channel
· Operating temperature: 0~70℃

Applications
· Switches / Routers / HBAs
· Server & Storage Devices
· Data Center Networking
· Enterprise storage
· High Performance Compute
· 100Gbs Ethernet
· Base Station / BBU / RRU

SFF-8665

Series:QSFP28

· Cable Length:1.0/2.0/3.0/5.0Meters

· Wire Size:26AWG,Silver plated copper,OD:8.0MM

· Plating: Au 30u"

· Color: Black Cable

· Environmental Compliance: RoHS

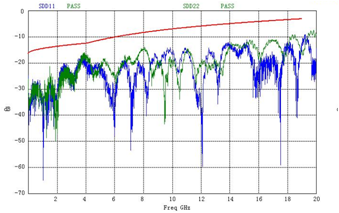

Electrical Characteristics

. Raw Cable Impedance: 100 ohm±10%
. Cable Assembly Impedance: 100 ohm±15%
. Intra-pair Skew: ﹤10ps
. Maximum Insertion Loss:22.48 dB@12.8906 GHz
. Crosstalk:≤-35 dB

100G Passive Direct Attach Copper Cable Straight
Product Description	SAS SFF-8665
Connector	External QSFP28 (SFF-8665)
Cable Length	5M
Signal Wire Size	26AWG, Tinned Copper
Impedance	100 OHM
Plating	Au 30u'
Cable Color	Black
Applications	servers,Storage rack,Workstations

HST’s QSFP28 DAC are high speed, cost effective alternative to fiber optics solution
in Ethernet, Fiber channel and Infiniband applications.
QSFP28 DAC enable hardware OEMs and data center operators to achieve high port density
at low cost and reduced power requirement.
HST QSFP28 DAC meets the industry MSA for signal integrity performance, can also
customize based on special require.
